suzuki belang 150r

saja je baru hari ni aku nak post pasal motor suzuki belang ni..walaupun dah lama keluar kan??geng2 motor taw la..apa yang aku suka pasal motor ni coz enjinnya DOHC(camshaft ada 2) pastu pkai coolant,klac tangan,seseran enjinnya 150cc..memang power la kan..hehe tapi aku cerita je kat sini..nak pkai pun xmampu,duit xdak..haha

body motor ni mmg smart tapi bukan utk pegi pasar la..bakul pun xdak..motor ni utk konvoi2 ke ok la lgpun nmpak sporty..lampu depan x berapa menarik la..huhu,klu masuk lampu motor cagiva ke smart la...hehe

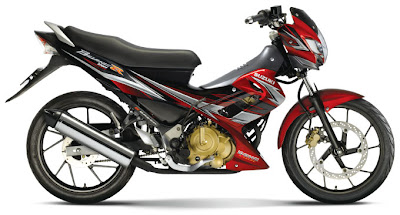

pandangan dari tepi mmg smart la...hehe

SPECIFICATIONS

Engine type : 4-stroke, air-cooled, DOHC

Bore (mm) : 62.0

Stroke (mm): 48.8

Piston displacement (cm³); 147

Compression ratio: 10.2 : 1

Carburetor: MIKUNI BS26SS

Starter system: Electric & kick starter

Lubrication system: Wet sump

Clutch: Wet, multi-plate type

Transmission: 6-speed

Drive system : RK428HSB, 120 links

Front suspension : Telescopic, coil spring, oil-damped

Rear suspension : Swingarm type, coil spring, oil-damped

Front brake: Disc brake

Rear brake: Disc brake

Front tire size: 70/90- 17 M/C 38P tube type

Rear tire size: 80/90- 17 M/C 44P tube type

Ignition type: Electronics ignition (CDI)

Spark Plug: CR8E or DENSO U24ESR-N

Battery: 12V 20.5KC (5.7AH) / 10HR

Headlight: 12V 32/32W + 18/18W

Fuel tank: 4.9 litres

Engine oil: Without filter change – 1,000ml

With filter change: 1,100ml

Overall length: 1,960 mm

Overall width: 650 mm

Overall height: 980 mm

Wheel base: 1,280 mm

Kerb Weight: 108 kg
